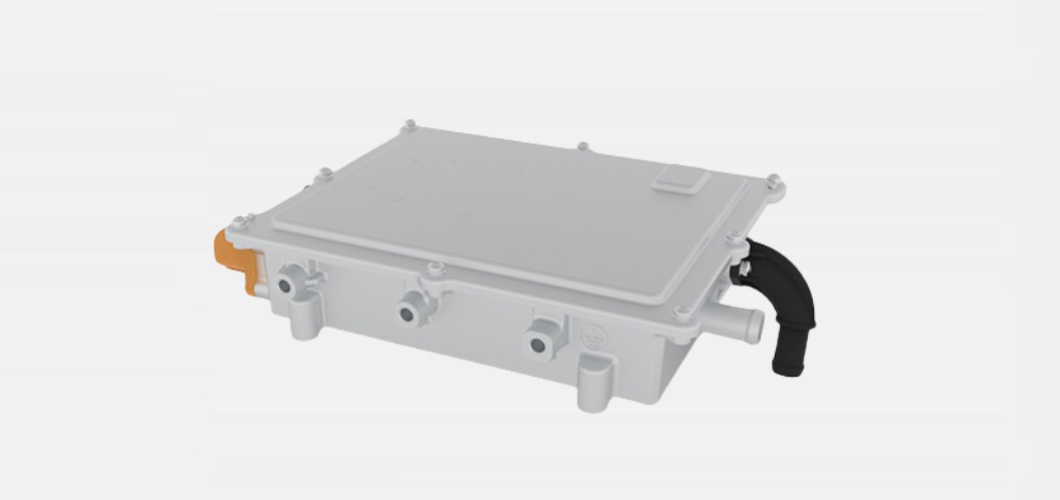

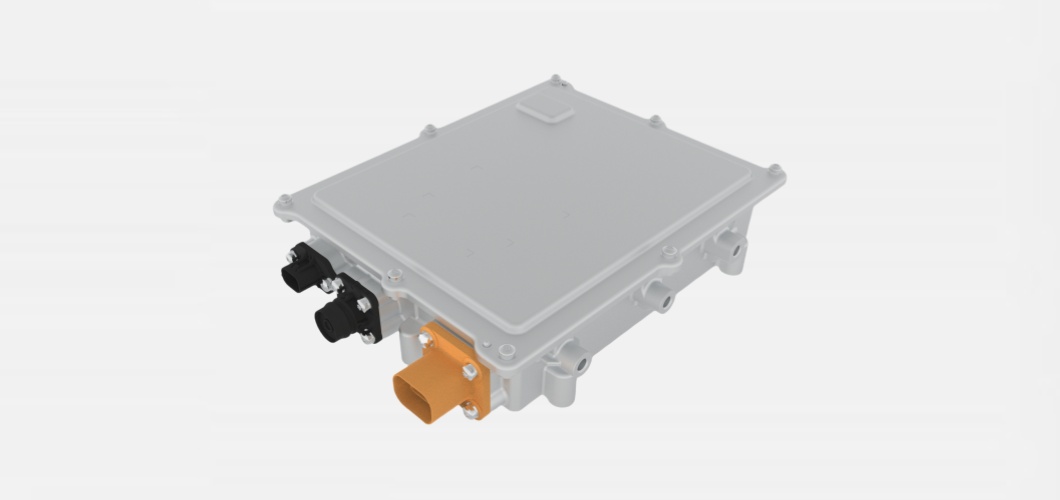

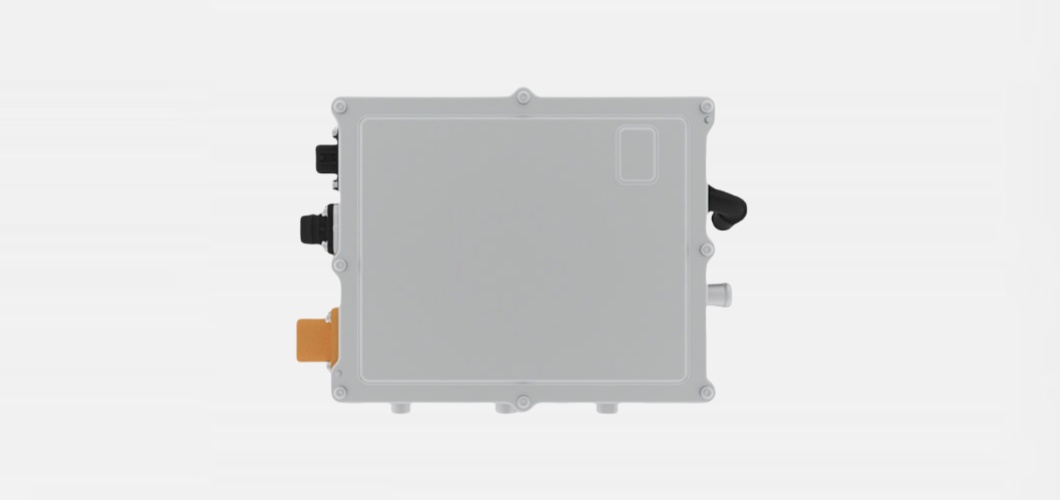

DC/DC Converter

DC/DC converter is an indispensable component in new energy vehicles. Its main function is to convert high voltage DC from the vehicle power battery to low voltage DC, so as to charge the vehicle 14V/27V or 48V low voltage battery and provide all the low voltage power supply for the whole vehicle.

Specification

  • Technology Platform

    Full-bridge conversion technology

  • Input Voltage

    400V(200-500V)；800V（400-925V）

  • Output Voltage

    14V（9-16V；27V(24-30V)；48V

  • Output Power

    1.8kW；2.5kW；3kW；3.5kW；4kW；6kW

  • Efficiency

    93%(weighting)；96%(max)

  • Packaging

    Standard Metal Housing/Modular Design

Core Advantages

  • High efficiency

  • Compact size

  • Digital control technology

  • High power density

  • High reliability

  • Single/bidirectional working mode (optional)

Product Application Scenarios

 Charge the vehicle's low-voltage battery;

Provide power for the vehicle's lighting, entertainment system, dashboard, electric seats, Windows, etc.

Typical Applications
